[Tutorial] The Ultimate Emulation Guide Part 1 - The Consoles

http://www.mediafire.com/imgbnc.php/...2429b9fa6g.jpg

In this series of guides I will show you all of the emulation possibilities for the Wii. Starting with the grandfathers like the 2600 going up to fifth gen like the N64 and then some. Part one will cover consoles, part two will cover handhelds and arcade, part three will cover PC, and part four will cover anything else like ScummVM. If there are multiple emulators for a platform I will only be covering my favorite one.

Whenever possible I will be using the Linux version of the incredible emulator Dolphin for screen shots. It will be a lot neater than than taking pics of my TV. I also like the irony of an emulator running on an emulator. The only drawback is that not all homebrew will run on it. If it doesn't run on Dolphin then I will fall back on pics of the TV. I will be using a 2GB PNY SD for all demonstrations and all SD images I use with Dolphin. Please try to refrain from asking me questions about Dolphin. If there is enough interest I might make a Dolphin guide but that would be separate from this series.

I will only be covering basic SD/SDHC/USB install. I will not be covering things like channel installs or forwarders. I'm not covering all of the controls and options because that can all be found on the emulators WiiBrew page and Readme. Also I will only be covering the original versions of the emulators and no unofficial forks. As a reminder most if not all emulators can be downloaded via The Homebrew Browser.

Please do not ask me where to obtain ROMs, BIOS, or disc images or I will ignore you. Also please don't ask questions that do not pertain to the guide like how to format your SD card or once again I will ignore you. Otherwise I will support my guides to the best of my abilities.

If you want to save a little room you can either delete or move the Readme files to your PC for safe keeping after you read them. I stress the after you read them part...Read them or fail! You can also leave them if you choose to because they wont hurt anything. I'll mention which files you need and don't need with every emulator.

Part 1 of the guide will cover thirteen emulators in all:
Chapter 1 : Enter The Grandfathers - JzintvWii, O2em, Wii2600, and WiiColEm
Chapter 2 : Movin' On Up - FCE Ultra GX, SMSPlus, and Wii7800
Chapter 3 : The Golden Age - Hugo-Wii, Genesis Plus GX, and SNES9x GX
Chapter 4 : The Developers Cruel Joke - Yabause Wii, Wii64, and WiiSX.


Chapter 1 : Enter The Grandfathers

In this chapter I will cover how to install JzintvWii, O2em, Wii2600, and WiiColEm.

http://i1128.photobucket.com/albums/...6/JZintvWi.png http://i1128.photobucket.com/albums/...de666/O2em.png http://i1128.photobucket.com/albums/...de666/2600.png http://i1128.photobucket.com/albums/...6/wiicolem.png

JzintvWii

http://i1128.photobucket.com/albums/...6/JZintvWi.png

JzintvWii is a Wii port of the PC Intellivision emulator Jzintv.

Homebrew Page
Download
Source

Controllers supported:
http://i1128.photobucket.com/albums/...Wiimotesvg.gif http://i1128.photobucket.com/albums/...rnativesvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif

Things you will need:
A softmodded Wii and remote
A Fat16/32 SD/SDHC (You can only use SDHC on system menu 4.0 or above.)

JzintvWii does not support USB devices.

Additional BIOS you will need:
exec.bin
grom.bin
ecs.bin

File types supported:
.int
.bin
.itv
.rom

Compressed file types supported:
None

1) Download and extract JzintvWii.zip. You will end up with a folder named JzintvWii.
http://i1128.photobucket.com/albums/...zintvWii-1.png
Inside JzintvWii you will find boot.dol, icon.png, meta.xml, and readme.txt.
http://i1128.photobucket.com/albums/...zintvWii-2.png
readme.txt isn't necessary to the operation of the emulator.

2) If you don't already have a apps folder on your SD/SDHC create a folder named apps at your root. - /apps
http://i1128.photobucket.com/albums/...zintvWii-3.png
Copy the entire contents of JzintvWii into the apps folder you are currently using or just created. - /apps/JzintvWii
http://i1128.photobucket.com/albums/...zintvWii-4.png

3) Create a folder named jzintvWii at the root of your SD/SDHC. - /jzintvWii
http://i1128.photobucket.com/albums/...zintvWii-5.png
Inside jzintvWii create a folder named roms. - /jzintvWii/roms
http://i1128.photobucket.com/albums/...zintvWii-6.png

4) Put all three BIOS files (exec.bin, grom.bin and ecs.bin) and your ROMs inside roms (/jzintvWii/roms).
http://i1128.photobucket.com/albums/...zintvWii-7.png

5) Eject your SD/SDHC from the PC and insert it in your Wii. Fire the Wii up and enter the HBC. Launch JzintvWii and it will go into a disclaimer screen.
http://i1128.photobucket.com/albums/...6/DSCF0227.jpg
Press A and you will be taken into the game selection screen.
http://i1128.photobucket.com/albums/...6/DSCF0230.jpg
Select your game and it will launch.
http://i1128.photobucket.com/albums/...6/DSCF0231.jpg

O2em

http://i1128.photobucket.com/albums/...de666/O2em.png

O2em is a Wii port of the PC Odyssey2/Videopac emulator O2em.

Homebrew Page
Download

Controllers supported:
http://i1128.photobucket.com/albums/...Wiimotesvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif

Things you will need:
A softmodded Wii and remote
A Fat16/32 SD/SDHC (You can only use SDHC on system menu 4.0 or above.)

O2em does not support USB devices.

Additional BIOS you will need:
o2rom.bin

File types supported:
.bin

Compressed file types supported:
.zip

1) Download and extract O2em.zip. You will end up with a folder named O2em.
http://i1128.photobucket.com/albums/...666/O2em-1.png
Inside O2em you will find __MACOSX and o2em. __MACOSX isn't necessary to the operation of the emulator so I delete it. Given the name it might be of use to Mac users.
http://i1128.photobucket.com/albums/...666/O2em-2.png
Inside O2em you will find boot.dol, icon.png, meta.xml, and readmeo2em.txt.
http://i1128.photobucket.com/albums/...666/O2em-3.png
readmeo2em.txt isn't necessary to the operation of the emulator.

2) If you don't already have a apps folder on your SD/SDHC create a folder named apps at your root. - /apps
http://i1128.photobucket.com/albums/...zintvWii-3.png
Copy the entire contents of O2em into the apps folder you are currently using or just created. - /apps/O2em
http://i1128.photobucket.com/albums/...666/O2em-4.png

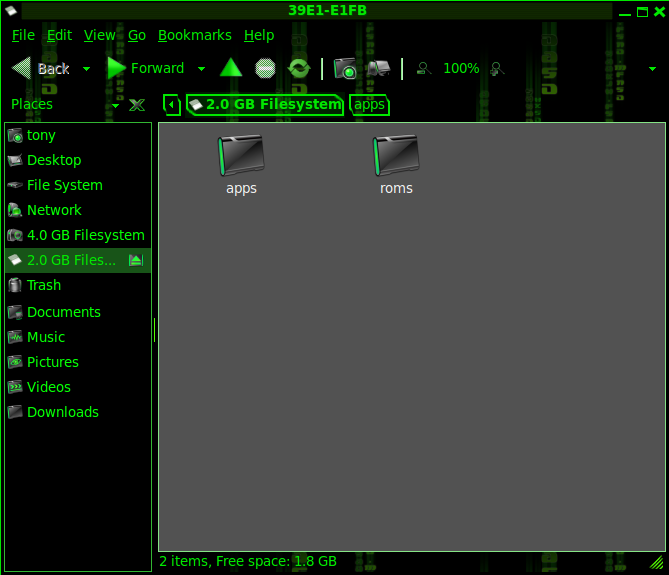

3) Create a folder named roms at the root of your SD/SDHC. - /roms
http://i1128.photobucket.com/albums/...666/O2em-5.png
Inside roms create a folder named romsodd. - /roms/romsodd
http://i1128.photobucket.com/albums/...666/O2em-6.png

4) Put the BIOS file (o2rom.bin) and you ROMs inside romsodd (/roms/romsodd).
http://i1128.photobucket.com/albums/...666/O2em-7.png

5) Eject your SD/SDHC from the PC and insert it in your Wii. Fire the Wii up and enter the HBC. Launch O2em and it will go into the emulator's games selection screen.
http://i1128.photobucket.com/albums/...666/O2em-8.png
Select your game and it will launch.
http://i1128.photobucket.com/albums/...666/O2em-9.png

Wii2600

http://i1128.photobucket.com/albums/...de666/2600.png

Wii2600 is a Wii port of the PC 2600 emulator Stella.

Homebrew Page
Download
Source

Controllers supported:
http://i1128.photobucket.com/albums/...Wiimotesvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif http://i1128.photobucket.com/albums/...eyboardsvg.gif

Things you will need:
A softmodded Wii and remote
A Fat16/32 SD (* see notes)

Wii2600 does not support SDHC or USB devices. (* see notes)

(* Even though SDHC cards aren't officially supported I do own an SDHC it runs on.)

Additional BIOS you will need:
None

File types supported:
.a26
.bin
.rom

Compressed file types supported:
.zip
.gzip

1) Download and extract wii2600-0_2.zip. You will end up with a folder named wii2600-0_2.
http://i1128.photobucket.com/albums/.../Wii2600-1.png
Inside wii2600-0_2 you will find apps and wii2600.
http://i1128.photobucket.com/albums/.../Wii2600-2.png
Inside apps you will find wii2600.
http://i1128.photobucket.com/albums/.../Wii2600-3.png
Inside the wii2600 in apps you will find docs (additional info inside), about.png, boot.dol, icon.png, meta.xml, Copyright.txt, Readme.txt, README.wii, and stellarc.
http://i1128.photobucket.com/albums/.../Wii2600-4.png
docs, Copyright.txt, Readme.txt, and README.wii aren't necessary to the operation of the emulator.
Inside the other wii2600 folder you will find roms, snapshots, and state. All three folders are currently empty.
http://i1128.photobucket.com/albums/.../Wii2600-5.png

2) If you don't already have a apps folder on your SD create a folder named apps at your root. - /apps
http://i1128.photobucket.com/albums/...zintvWii-3.png
Copy the entire contents of the wii2600 folder in apps into the apps folder you are currently using or just created. - /apps/wii2600
http://i1128.photobucket.com/albums/.../Wii2600-6.png

3) Copy wii2600 and it's contents (roms, snapshots, and state) to the root of your SD. - /wii2600 (/wii2600/roms, /wii2600/snapshots, /wii2600/state)
http://i1128.photobucket.com/albums/.../Wii2600-7.png

4) Put your ROMs inside roms (/wii2600/roms).
http://i1128.photobucket.com/albums/.../Wii2600-8.png

5) Eject your SD from the PC and insert it in your Wii. Fire the Wii up and enter the HBC. Launch Wii2600 and it will go into an options screen.
http://i1128.photobucket.com/albums/.../Wii2600-9.jpg
Choose start emulator and you will be taken into the game selection screen
http://i1128.photobucket.com/albums/...Wii2600-10.jpg
Select your game and it will launch.
http://i1128.photobucket.com/albums/...Wii2600-11.jpg

WiiColEm

http://i1128.photobucket.com/albums/...6/wiicolem.png

WiiColEm is a Wii port of the PC ColecoVision emulator ColEm.

Homebrew Page
Download
Source

Controllers supported:
http://i1128.photobucket.com/albums/...Wiimotesvg.gif http://i1128.photobucket.com/albums/...rnativesvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif

Things you will need:
A softmodded Wii and remote
A Fat16/32 SD (* see notes)

WiiColEm does not support SDHC and USB devices. (* see notes)

(* Even though SDHC cards aren't officially supported I do own an SDHC it runs on.)

Additional BIOS you will need:
None

File types supported:
.cv
.col
.rom

Compressed file types supported:
None

1) Download and extract wiicolem-0_1.zip. You will end up with a folder named wiicolem-0_1.
http://i1128.photobucket.com/albums/...WiiColEm-1.png
Inside wiicolem-0_1 you will find apps and wiicolem.
http://i1128.photobucket.com/albums/...WiiColEm-2.png
Inside apps you will find wiicolem.
http://i1128.photobucket.com/albums/...WiiColEm-3.png
Inside the wiicolem in apps you will find boot.dol, icon.png, meta.xml, and README.wii.
http://i1128.photobucket.com/albums/...WiiColEm-4.png
README.wii isn't necessary to the operation of the emulator.
Inside the other wiicolem folder you will find roms, saves, COLECO.ROM, wiicolem.conf, and wiicolem.db. The rom and saves folders are currently empty.
http://i1128.photobucket.com/albums/...WiiColEm-5.png

2) If you don't already have a apps folder on your SD create a folder named apps at your root. - /apps
http://i1128.photobucket.com/albums/...zintvWii-3.png
Copy the entire contents of the wiicolem folder in apps into the apps folder you are currently using or just created. - /apps/wiicolem
http://i1128.photobucket.com/albums/...WiiColEm-6.png

3) Copy wiicolem and it's contents (roms, saves, COLECO.ROM, wiicolem.conf, and wiicolem.db) to the root of your SD. - /wiicolem (/wiicolem/roms and /wiicolem/saves)
http://i1128.photobucket.com/albums/...WiiColEm-7.png

4) Put your ROMs inside roms (/wiicolem/roms).
http://i1128.photobucket.com/albums/...WiiColEm-8.png

5) Eject your SD from the PC and insert it in your Wii. Fire the Wii up and enter the HBC. Launch WiiColEm and it will go into an options screen.
http://i1128.photobucket.com/albums/...WiiColEm-9.jpg
Select Load cartridge and you will be taken to the game selection screen.
http://i1128.photobucket.com/albums/...iiColEm-10.jpg
Select you game and it will launch.
http://i1128.photobucket.com/albums/...WiiColEm-9.jpg

Chapter 2 : Movin' On Up

In this chapter I will cover how to install FCE Ultra GX, SMSPlus, and Wii7800.

http://i1128.photobucket.com/albums/...ide666/fce.png http://i1128.photobucket.com/albums/...ide666/sms.png http://i1128.photobucket.com/albums/...66/wii7800.png

FCE Ultra GX

http://i1128.photobucket.com/albums/...ide666/fce.png

FCE Ultra GX is a Wii port of the PC NES emulator FCE Ultra.

Homebrew Page
Google Code Page
Download
Source

Controllers supported:
http://i1128.photobucket.com/albums/...Wiimotesvg.gif http://i1128.photobucket.com/albums/...rnativesvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif

Things you will need:
A softmodded Wii and remote
A Fat16/32 SD/SDHC or USB device (You can only use SDHC on system menu 4.0 or above.)

Additional BIOS you will need:
disksys.rom (Optional - Only necessary for Famicom Disk System (FDS) games)

File types supported:
.nes
.nez
.fds
.nsf
.unf
.unif

Compressed file types supported:
.zip
.7z

1) Download and extract FCE Ultra GX 3.2.3.zip. You will end up with a folder named FCE Ultra GX 3.2.3.
http://i1128.photobucket.com/albums/...e666/FCE-1.png
Inside FCE Ultra GX 3.2.3 you will find apps and fceugx.
http://i1128.photobucket.com/albums/...e666/FCE-2.png
Inside apps you will find fceugx.
http://i1128.photobucket.com/albums/...e666/FCE-3.png
Inside the fceugx in apps you will find boot.dol, icon.png, meta.xml, and readme.txt.
http://i1128.photobucket.com/albums/...e666/FCE-4.png
readme.txt isn't necessary to the operation of the emulator.
Inside the other fceugx folder you will find cheats, roms, and saves. All three are currently empty.
http://i1128.photobucket.com/albums/...e666/FCE-5.png

2) If you don't already have a apps folder on your SD/SDHC/USB create a folder named apps at your root. - /apps
http://i1128.photobucket.com/albums/...zintvWii-3.png
Copy the entire contents of the fceugx folder in apps into the apps folder you are currently using or just created. - /apps/fceugx
http://i1128.photobucket.com/albums/...e666/FCE-6.png

3) Copy fceugx and it's contents (cheats, roms, and saves) to the root of your SD/SDHC/USB. - /fceugx (/fceugx/cheats, /fceugx/roms, /fceugx/saves)
http://i1128.photobucket.com/albums/...e666/FCE-7.png

4) Put your ROMs inside roms (/fceugx/roms).
http://i1128.photobucket.com/albums/...e666/FCE-8.png
If you want to use the optional BIOS (disksys.rom) put it in your fceugx folder (/fceugx).
http://i1128.photobucket.com/albums/...e666/FCE-9.png

5) Eject your SD/SDHC/USB from the PC and insert it in your Wii. Fire the Wii up and enter the HBC. Launch FCE Ultra GX and it will go into the game selection screen.
http://i1128.photobucket.com/albums/...666/FCE-10.jpg
Select your game and it will launch.
http://i1128.photobucket.com/albums/...666/FCE-11.jpg

SMSPlus

http://i1128.photobucket.com/albums/...ide666/sms.png

SMSPlus is a Wii port of the PC Master System/Game Gear emulator SMS Plus.

Homebrew Page
Google Code Page
Download
Source

Controllers supported:
http://i1128.photobucket.com/albums/...Wiimotesvg.gif http://i1128.photobucket.com/albums/...rnativesvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif

Things you will need:
A softmodded Wii and remote
A Fat16/32 SD/SDHC or USB device (You can only use SDHC on system menu 4.0 or above.)

Additional BIOS you will need:
BIOS.sms (Optional)

File types supported:
.gg
.sms

Compressed file types supported:
.zip

1) Download and extract smsplusgx-081214.7z. You will end up with a folder named smsplusgx-081214.
http://i1128.photobucket.com/albums/...e666/SMS-1.png
Inside smsplusgx-081214 you will find apps, history.txt, libogc_license.txt, LICENSE, smsplus.pdf, smsplus_cube.dol, and smswii_cube.dol.
http://i1128.photobucket.com/albums/...e666/SMS-2.png
Only the contents of apps are necessary to the emulators operation.
Inside apps you will find smsplus.
http://i1128.photobucket.com/albums/...e666/SMS-3.png
Inside smsplus you will find boot.dol, icon.png, and meta.xml.
http://i1128.photobucket.com/albums/...e666/SMS-4.png

2) If you don't already have a apps folder on your SD/SDHC/USB create a folder named apps at your root. - /apps
http://i1128.photobucket.com/albums/...zintvWii-3.png
Copy the entire contents of the smsplus folder into apps. - /apps/smsplus
http://i1128.photobucket.com/albums/...e666/SMS-5.png

3) Create a folder named smsplus at the root of your SD/SDHC/USB. - /smsplus
http://i1128.photobucket.com/albums/...e666/SMS-6.png
Inside smsplus create a folder named roms. - /smsplus/roms
http://i1128.photobucket.com/albums/...e666/SMS-7.png

4) Put your ROMs inside roms (/smsplus/roms).
http://i1128.photobucket.com/albums/...e666/SMS-8.png
If you want to use the optional BIOS (BIOS.sms) put it in your smsplus folder (/smsplus).
http://i1128.photobucket.com/albums/...e666/SMS-9.png

5) Eject your SD/SDHC/USB from the PC and insert it in your Wii. Fire the Wii up and enter the HBC. Launch SMSPlus and it will go into a license screen.
http://i1128.photobucket.com/albums/...666/SMS-10.jpg
Press A and you will be taken to an options screen.
http://i1128.photobucket.com/albums/...666/SMS-11.jpg
Choose Load New Game and you will be taken to a screen where you can choose where to load your game from.
http://i1128.photobucket.com/albums/...666/SMS-12.jpg
Choose where to load your game from and you will be taken to your game list.
http://i1128.photobucket.com/albums/...666/SMS-13.jpg
Select your game and it will launch.
http://i1128.photobucket.com/albums/...666/SMS-14.jpg

Wii7800

http://i1128.photobucket.com/albums/...66/wii7800.png

Wii7800 is a Wii port of the PC 7800 emulator ProSystem emulator.

Homebrew Page
Download
Source
Compatibility List

Controllers supported:
http://i1128.photobucket.com/albums/...Wiimotesvg.gif http://i1128.photobucket.com/albums/...rnativesvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif

Things you will need:
A softmodded Wii and remote
A Fat16/32 SD (* see notes)

Wii7800 does not support SDHC and USB devices. (* see notes)

(* Even though SDHC cards aren't officially supported I do own an SDHC it runs on.)

Additional BIOS you will need:
7800.rom (NTSC) (Optional - Will work without BIOS)
7800pal.rom (PAL) (Optional - Will work without BIOS)

File types supported:
.a78
.bin
.rom

Compressed file types supported:
.zip

1) Download and extract wii7800-0_3.zip. You will end up with a folder named wii7800-0_3.
http://i1128.photobucket.com/albums/...666/7800-1.png
Inside wii7800-0_3 you will find APPS and WII7800.
http://i1128.photobucket.com/albums/...666/7800-2.png
Inside APPS you will find WII7800.
http://i1128.photobucket.com/albums/...666/7800-3.png
Inside the WII7800 in APPS you will find about.png, BOOT.DOL, icon.png, License.txt, meta.xml, and README.wii.
http://i1128.photobucket.com/albums/...666/7800-4.png
License.txt and README.wii aren't necessary to the operation of the emulator.
Inside the other WII7800 folder you will find roms, saves, Highscore.rom, ProSystem.dat, and wii7800.conf. roms and saves are currently empty.
http://i1128.photobucket.com/albums/...666/7800-5.png

2) If you don't already have a apps folder on your SD create a folder named apps at your root. - /apps
http://i1128.photobucket.com/albums/...zintvWii-3.png
Copy the entire contents of the WII7800 folder in APPS into the apps folder you are currently using or just created. - /apps/WII7800
http://i1128.photobucket.com/albums/...666/7800-6.png

3) Copy WII7800 and it's contents (roms, saves, Highscore.rom, ProSystem.dat, and wii7800.conf) to the root of your SD. - /WII7800 (/WII7800/roms, /WII7800/saves)
http://i1128.photobucket.com/albums/...666/7800-7.png

4) Put your ROMs inside roms (/WII7800/roms).
http://i1128.photobucket.com/albums/...666/7800-8.png
If you want to use the optional BIOS (7800.rom or 7800pal.rom) put it in your WII7800 folder (/WII7800).
http://i1128.photobucket.com/albums/...666/7800-9.png

5) Eject your SD from the PC and insert it in your Wii. Fire the Wii up and enter the HBC. Launch Wii7800 and it will go into an options screen.
http://i1128.photobucket.com/albums/...66/7800-10.jpg
Choose Load cartridge and you will be taken to the game selection screen.
http://i1128.photobucket.com/albums/...66/7800-11.jpg
Choose your game and you will be taken into the BIOS screen.
http://i1128.photobucket.com/albums/...66/7800-12.jpg
Choose your mode and the game will launch.
http://i1128.photobucket.com/albums/...66/7800-13.jpg

Chapter 3 : The Golden Age

In this chapter I will cover how to install Hugo-Wii, Genesis Plus GX, and SNES9x GX.

http://i1128.photobucket.com/albums/...de666/hugo.png http://i1128.photobucket.com/albums/...66/Genplus.pnghttp://i1128.photobucket.com/albums/...de666/snes.png

Hugo-Wii

http://i1128.photobucket.com/albums/...de666/hugo.png

Hugo-Wii is a Wii port of the PC TurboGrafx-16/PC Engine emulator Hugo.

Homebrew Page
Google Code Page
Download
Source

Controllers supported:
http://i1128.photobucket.com/albums/...Wiimotesvg.gif http://i1128.photobucket.com/albums/...rnativesvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif

Things you will need:
A softmodded Wii and remote
A Fat16/32 SD/SDHC or USB device (You can only use SDHC on system menu 4.0 or above.)

Additional BIOS you will need:
syscard.pce (If you intend on playing .bin or .iso files)

File types supported:
.pce
.bin
.iso

Compressed file types supported:
.zip (Only .pce files)

1) Download and extract hugogx-100613.zip. You will end up with a folder named hugogx-100613.
http://i1128.photobucket.com/albums/...666/Hugo-1.png
Inside hugogx-100613 you will find apps, hugo, compile_all.bat, history.txt, hugo_cube.dol, hugo-gx.txt, hugo_wii.dol, libogc_license.txt, Makefile.gc, and Makefile.wii.
http://i1128.photobucket.com/albums/...666/Hugo-2.png
compile_all.bat, history.txt, hugo_cube.dol, hugo-gx.txt, hugo_wii.dol, libogc_license.txt, Makefile.gc, and Makefile.wii aren't necessary to the emulators operation.
Inside apps you will find hugo.
http://i1128.photobucket.com/albums/...666/Hugo-3.png
Inside the hugo in apps you will find boot.dol, icon.png, and meta.xml.
http://i1128.photobucket.com/albums/...666/Hugo-4.png
Inside the other hugo folder you will find roms and hugo.xml. roms is currently empty.
http://i1128.photobucket.com/albums/...666/hugo-5.png

2) If you don't already have a apps folder on your SD/SDHC/USB create a folder named apps at your root. - /apps
http://i1128.photobucket.com/albums/...zintvWii-3.png
Copy the entire contents of the hugo folder in apps into the apps folder you are currently using or just created. - /apps/hugo
http://i1128.photobucket.com/albums/...666/Hugo-6.png

3) Copy hugo and it's contents (rroms and hugo.xml) to the root of your SD/SDHC/USB. - /hugo (/hugo/roms)
http://i1128.photobucket.com/albums/...666/Hugo-7.png

4) Put your ROMs and game images inside roms (/hugo/roms).
http://i1128.photobucket.com/albums/...666/Hugo-8.png
If you want to use the optional BIOS (syscard.pce) put it in your hugo folder (/hugo).
http://i1128.photobucket.com/albums/...666/Hugo-9.png

5) Eject your SD/SDHC/USB from the PC and insert it in your Wii. Fire the Wii up and enter the HBC. Launch Hugo-Wii and it will go into a credit screen.
http://i1128.photobucket.com/albums/...66/Hugo-10.jpg
Press A and you will be taken into an options screen.
http://i1128.photobucket.com/albums/...66/Hugo-11.jpg
Choose Load New Game and you will be taken into a screen where you can choose where to load your game from.
http://i1128.photobucket.com/albums/...66/Hugo-12.jpg
Select where to load your game from and you will be taken into the game selection screen.
http://i1128.photobucket.com/albums/...66/Hugo-13.jpg
Select your game and it will launch.
http://i1128.photobucket.com/albums/...66/Hugo-14.jpg

Genesis Plus GX

http://i1128.photobucket.com/albums/...66/Genplus.png

Genesis Plus GX is an improved Wii port of the PC Genesis/Megadrive emulator Genesis Plus.

Homebrew Page
Google Code Page
Download
Source
Compatibility List

Controllers supported:
http://i1128.photobucket.com/albums/...Wiimotesvg.gif http://i1128.photobucket.com/albums/...rnativesvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif

Things you will need:
A softmodded Wii and remote
A Fat16/32 SD/SDHC or USB device (You can only use SDHC on system menu 4.0 or above.)

Additional BIOS you will need:
BIOS.bin (Optional)

File types supported:
.bin
.gen
.md
.smd

Compressed file types supported:
.zip

1) Download and extract genplus-gx-1.4.1.zip. You will end up with a folder named genplus-gx-1.4.1.
http://i1128.photobucket.com/albums/...e666/Gen-1.png
Inside genplus-gx-1.4.1 you will find apps, genplus.pdf, genplus_cube.dol, genplus_wii.dol, HISTORY.txt, and LICENSE.txt.
http://i1128.photobucket.com/albums/...e666/Gen-2.png
Only the contents of apps are necessary to the emulators operation.
Inside apps you will find genplus-gx.
http://i1128.photobucket.com/albums/...e666/Gen-3.png
Inside genplus-gx you will find boot.dol, icon.png, and meta.xml.
http://i1128.photobucket.com/albums/...e666/Gen-4.png

2) If you don't already have a apps folder on your SD/SDHC/USB create a folder named apps at your root. - /apps
http://i1128.photobucket.com/albums/...zintvWii-3.png
Copy genplus-gx into the apps folder you are currently using or just created. - /apps/genplus-gx
http://i1128.photobucket.com/albums/...e666/Gen-5.png

3) Create a folder named genplus at the root of your SD/SDHC/USB. - /genplus
http://i1128.photobucket.com/albums/...e666/Gen-6.png
Inside genplus create a folder named roms. - /genplus/roms
http://i1128.photobucket.com/albums/...e666/Gen-7.png

4) Put your ROMs inside roms (/genplus/roms).
http://i1128.photobucket.com/albums/...e666/Gen-8.png
If you want to use the optional BIOS (BIOS.bin) put it in your genplus folder (/genplus).
http://i1128.photobucket.com/albums/...e666/Gen-9.png

5) Eject your SD/SDHC/USB from the PC and insert it in your Wii. Fire the Wii up and enter the HBC. Launch Genesis Plus GX and it will go into a disclaimer screen.
http://i1128.photobucket.com/albums/...666/Gen-10.jpg
Press A and you will be taken into an options screen.
http://i1128.photobucket.com/albums/...666/Gen-11.jpg
Pick Load Game and you will be taken to a screen where you can select where to load you games from.
http://i1128.photobucket.com/albums/...666/Gen-12.jpg
Pick where to load your game from and you will be taken into the game selection screen.
http://i1128.photobucket.com/albums/...666/Gen-13.jpg
Pick your game and it will launch.
http://i1128.photobucket.com/albums/...666/Gen-14.jpg

SNES9x GX

http://i1128.photobucket.com/albums/...de666/snes.png

SNES9x GX is a Wii port of the PC Super Nintendo emulator SNES9x.

Homebrew Page
Google Code Page
Download
Source

Things you will need:
A softmodded Wii and remote
A Fat16/32 SD/SDHC or USB device (You can only use SDHC on system menu 4.0 or above.)

Controllers supported:
http://i1128.photobucket.com/albums/...Wiimotesvg.gif http://i1128.photobucket.com/albums/...rnativesvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif

Additional BIOS you will need:
None

File types supported:
.smc
.sfc
.swc
.fig

Compressed file types supported:
.zip
.7z

1) Download and extract Snes9x GX 4.2.5.zip. You will end up with a folder named Snes9x GX 4.2.5.
http://i1128.photobucket.com/albums/...de666/9x-1.png
Inside FCE Snes9x GX 4.2.5 you will find apps and snes9xgx.
http://i1128.photobucket.com/albums/...de666/9x-2.png
Inside apps you will find snes9xgx.
http://i1128.photobucket.com/albums/...de666/9x-3.png
Inside the snes9xgx in apps you will find boot.dol, icon.png, meta.xml, and readme.txt.
http://i1128.photobucket.com/albums/...de666/9x-4.png
readme.txt isn't necessary to the operation of the emulator.
Inside the other snes9xgx folder you will find cheats, roms, and saves. All three are currently empty.
http://i1128.photobucket.com/albums/...de666/9x-5.png

2) If you don't already have a apps folder on your SD/SDHC/USB create a folder named apps at your root. - /apps
http://i1128.photobucket.com/albums/...zintvWii-3.png
Copy the entire contents of the fceugx folder in apps into the apps folder you are currently using or just created. - /apps/snes9xgx
http://i1128.photobucket.com/albums/...de666/9x-6.png

3) Copy snes9xgx and it's contents (cheats, roms, and saves) to the root of your SD/SDHC/USB. - /snes9xgx (/snes9xgx/cheats, /snes9xgx/roms, /snes9xgx/saves)
http://i1128.photobucket.com/albums/...de666/9x-7.png

4) Put your ROMs inside roms(/snes9xgx/roms).
http://i1128.photobucket.com/albums/...de666/9x-8.png

5) Eject your SD/SDHC/USB from the PC and insert it in your Wii. Fire the Wii up and enter the HBC. Launch SNES9x GX and it will go into your game list.
http://i1128.photobucket.com/albums/...de666/9x-9.jpg
Pick your game and it will launch.
http://i1128.photobucket.com/albums/...e666/9x-10.jpg

Chapter 4 : The Developers Cruel Joke

In this chapter I will cover how to install Yabause Wii, Wii64, and WiiSX.

http://i1128.photobucket.com/albums/...666/saturn.png http://i1128.photobucket.com/albums/...cide666/64.png http://i1128.photobucket.com/albums/...e666/Wiisx.png

I need to add a big note here and let everyone know fifth gen emulation is mad buggy. Some games can be playable or even run fairly well but don't expect to enter fifth gen emulation without tons of problematic and non-working games. You just have to accept it if you want to play Saturn, PSX, or N64 on your Wii because it is what it is.

Yabause Wii

http://i1128.photobucket.com/albums/...666/saturn.png

Yabause Wii is a Wii port of the PC Saturn emulator Yabause.

Homebrew Page
Download

Controllers supported:
http://i1128.photobucket.com/albums/...Wiimotesvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif

Things you will need:
A softmodded Wii and remote
A Fat16/32 SD/SDHC or USB device (You can only use SDHC on system menu 4.0 or above.)

Additional BIOS you will need:
bios.bin (Optional - Dependant on the game you want to run)

File types supported:
.cue
.iso

Compressed file types supported:
None

1) Download and extract yabause-r2604wii-beta17.zip. You will end up with a folder named yabause-r2604wii-beta17.
http://i1128.photobucket.com/albums/.../yabause-1.png
Inside yabause-r2604wii-beta17 you will find HBC, source, and ReadMii1st.txt.
http://i1128.photobucket.com/albums/.../yabause-2.png
source and ReadMii1st.txt aren't necessary to the operation of the emulator.
Inside HBC you will find apps and SSROMS.
http://i1128.photobucket.com/albums/.../yabause-3.png
Inside apps you will find yabause.
http://i1128.photobucket.com/albums/.../yabause-4.png
Inside yabause you will find boot.dol, icon.png, icon0.png, icon1.png, and meta.xml.
http://i1128.photobucket.com/albums/.../yabause-5.png
Inside SSROMS you will find a placeholder file named "Copy here the Sega Saturn Game Rom files and BIOS file as bios.bin (no need)".
http://i1128.photobucket.com/albums/.../yabause-6.png
Delete the placeholder file.

2) If you don't already have a apps folder on your SD/SDHC/USB create a folder named apps at your root. - /apps
http://i1128.photobucket.com/albums/...zintvWii-3.png
Copy the entire contents of the yabause folder in apps into the apps folder you are currently using or just created. - /apps/yabause
http://i1128.photobucket.com/albums/.../yabause-7.png

3) Copy SSROMS to the root of your SD/SDHC/USB. - /SSROMS
http://i1128.photobucket.com/albums/.../yabause-8.png

4) Put your game images in SSROMS (/SSROMS). If you want to use the optional BIOS (bios.bin) put it in your /SSROMS (/SSROMS) folder too.
http://i1128.photobucket.com/albums/.../yabause-9.png

5) Eject your SD/SDHC/USB from the PC and insert it in your Wii. Fire the Wii up and enter the HBC. Launch Yabause Wii and it will go into an options selection screen.
http://i1128.photobucket.com/albums/...yabause-10.jpg
Select Load ISO/CUE and you will be taken into the game selection screen.
http://i1128.photobucket.com/albums/...yabause-11.jpg
Select your game and you will be returned to the options screen.
http://i1128.photobucket.com/albums/...yabause-10.jpg
Choose Start emulation and your game will launch.
http://i1128.photobucket.com/albums/...yabause-12.jpg

Wii64

http://i1128.photobucket.com/albums/...cide666/64.png

Wii64 is a Wii port of the PC N64 emulator Mupen64.

Homebrew Page
Home Page
Google Code Page
Download
Source
Compatibility List

Controllers supported:
http://i1128.photobucket.com/albums/...Wiimotesvg.gif http://i1128.photobucket.com/albums/...rnativesvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif

(Wii64 does not currently support the Classic Controller Pro)

Things you will need:
A softmodded Wii and remote
A Fat16/32 SD or USB device (* see notes)

Wii64 does not support SDHC. (* see notes)

(* Even though SDHC cards aren't officially supported I do own an SDHC it runs on.)

Additional BIOS you will need:
None

File types supported:
.z64
.v64
.n64

Compressed file types supported:
None

1) Download and extract wii64-beta1.1.zip. You will end up with a folder named wii64-beta1.1.
http://i1128.photobucket.com/albums/...66/Wii64-1.png
Inside yabause-r2604wii-beta17 you will find apps, wii64, and README.
http://i1128.photobucket.com/albums/...66/Wii64-2.png
README isn't necessary to the operation of the emulator.
Inside apps you will find wii64.
http://i1128.photobucket.com/albums/...66/Wii64-3.png
Inside wii64 you will find boot.dol, icon.png, and meta.xml.
http://i1128.photobucket.com/albums/...66/Wii64-4.png
Inside the other wii64 folder you will find roms and saves. saves is currently empty.
http://i1128.photobucket.com/albums/...66/Wii64-5.png
Inside roms you will find fcube.v64 and wii64.z64.
http://i1128.photobucket.com/albums/...66/Wii64-6.png

2) If you don't already have a apps folder on your SD/SDHC/USB create a folder named apps at your root. - /apps
http://i1128.photobucket.com/albums/...zintvWii-3.png
Copy the entire contents of the wii64 folder in apps into the apps folder you are currently using or just created. - /apps/wii64
http://i1128.photobucket.com/albums/...66/Wii64-7.png

3) Copy wii64 and it's contents (roms and saves) to the root of your SD/SDHC/USB. - /wii64 (/wii64/roms, /wii64/saves)
http://i1128.photobucket.com/albums/...66/Wii64-8.png

4) Put your ROMs inside roms (/wii64/roms).
http://i1128.photobucket.com/albums/...66/Wii64-9.png

5) Eject your SD/SDHC/USB from the PC and insert it in your Wii. Fire the Wii up and enter the HBC. Launch Wii64 and it will go into a options screen.
http://i1128.photobucket.com/albums/...6/Wii64-10.png
Choose Load ROM and you will be taken into a screen where you can choose where to load your ROMs from.
http://i1128.photobucket.com/albums/...6/Wii64-11.png
Pick where to load your Roms from and you will be taken into the game selection screen.
http://i1128.photobucket.com/albums/...6/Wii64-12.png
Pick you game and you will be taken back to the options screen with the ROM loaded.
http://i1128.photobucket.com/albums/...6/Wii64-13.png
Pick Play Game and it will launch.
http://i1128.photobucket.com/albums/...6/Wii64-14.png

WiiSX

http://i1128.photobucket.com/albums/...e666/Wiisx.png

WiiSX is a Wii port of the PSX emulator PCSX.

Homebrew Page
Home Page
Google Code Page
Download
Source
Compatibility List

Controllers supported:
http://i1128.photobucket.com/albums/...Wiimotesvg.gif http://i1128.photobucket.com/albums/...rnativesvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif http://i1128.photobucket.com/albums/...trollersvg.gif

(WiiSX does not currently support the Classic Controller Pro)

Things you will need:
A softmodded Wii and remote
A Fat16/32 SD/SDHC or USB device (You can only use SDHC on system menu 4.0 or above.)

Additional BIOS you will need:
SCPH1001.BIN

File types supported:
.bin
.cue
.img
.iso

Compressed file types supported:
None

1) Download and extract WiiSX-beta2.1.zip. You will end up with a folder named wii64-beta1.1.
http://i1128.photobucket.com/albums/...66/Wiisx-1.png
Inside WiiSX-beta2.1 you will find apps, wiisx, and README.
http://i1128.photobucket.com/albums/...66/Wiisx-2.png
README isn't necessary to the operation of the emulator.
Inside apps you will find wiiSX.
http://i1128.photobucket.com/albums/...66/Wiisx-3.png
Inside wiiSX you will find boot.dol, icon.png, and meta.xml.
http://i1128.photobucket.com/albums/...66/Wiisx-4.png
Inside the other wiisx folder you will find bios, isos, and saves. All three are currently empty.
http://i1128.photobucket.com/albums/...66/Wiisx-5.png

2) If you don't already have a apps folder on your SD/SDHC/USB create a folder named apps at your root. - /apps
http://i1128.photobucket.com/albums/...zintvWii-3.png
Copy the entire contents of the wiiSX folder in apps into the apps folder you are currently using or just created. - /apps/wiiSX
http://i1128.photobucket.com/albums/...66/Wiisx-6.png

3) Copy wiisx and it's contents (bios, isos, and saves) to the root of your SD/SDHC/USB. - /wiisx (/wiisx/bios, /wiisx/isos, /wiisx/saves)
http://i1128.photobucket.com/albums/...66/Wiisx-7.png

4) Put your BIOS inside bios (/wiisx/bios).
http://i1128.photobucket.com/albums/...66/Wiisx-8.png
Put your game images inside isos (/wiisx/isos).
http://i1128.photobucket.com/albums/...66/Wiisx-9.png

5) Eject your SD/SDHC/USB from the PC and insert it in your Wii. Fire the Wii up and enter the HBC. Launch WiiSX and it will go into an options screen.
http://i1128.photobucket.com/albums/...6/Wiisx-10.jpg
Choose Load ISO and you will be taken into a screen where you can choose where to load your games from.
http://i1128.photobucket.com/albums/...6/Wiisx-11.jpg
Pick where to load your games from and you will be taken into the game selection screen.
http://i1128.photobucket.com/albums/...6/Wiisx-12.jpg
Pick you game and you will be shown an info screen about the game.
http://i1128.photobucket.com/albums/...6/Wiisx-13.jpg
Select OK and and you will be taken back to the options screen with the game loaded.
http://i1128.photobucket.com/albums/...6/Wiisx-14.jpg
Pick Play Game and it will launch.
http://i1128.photobucket.com/albums/...6/Wiisx-15.jpg

Changelog

1/2/11 - Added controller compatibility at the suggestion of robgee. Thank you sir! I though icons would be a nice touch. I also added the emulators HBC icons while I was at it.

1/2/11 update 2 - Added notes about Classic Controller Pro support to Wii64 and WiiSX. Thanks Joostin!

Hey, nice guide. You really cover a lot of stuff. I especially love the category names. :D

Awesome work Darkcide666. Something like this has been very needed here. Stickied.

On the intellivision emulator, I'm not sure why Wiibrew says ecs.bin is required. I'm running it just fine on my Wii with only exec.bin and grom.bin, same as the PC emulators. Maybe particular games? Anyways, good work.

Thanks guys. I needed a short break from my MAME compatibility list and I figured we could use a proper and thorough emulator setup guide...Most of the other good stuff has been covered already and I love emulation so why not. Plus it gives me a chance to try out some of the emulators for the Wii that I had little or no experience with such as WiiSX. Hopefully it won't take me that long to complete and post the other three parts of my guide.

Quote:

---

Originally Posted by Ithian

On the intellivision emulator, I'm not sure why Wiibrew says ecs.bin is required. I'm running it just fine on my Wii with only exec.bin and grom.bin, same as the PC emulators. Maybe particular games?

---

Correct. You would only need it for ECS games like Scooby-Doo's Maze Chase for example.

Great guide Darkcide, I just recently added Wii64 to my list of emulators. You may want to add that if people want to run their Wii64 from the HDD they may need the fix for USB 2.0. I could not get the emulator to see the drive til I did this. Post for the fix is here.

Quote:

---

Originally Posted by dadi40

Great guide Darkcide, I just recently added Wii64 to my list of emulators. You may want to add that if people want to run their Wii64 from the HDD they may need the fix for USB 2.0. I could not get the emulator to see the drive til I did this. Post for the fix is here.

---

Thanks but I can't do it. I decide to only cover the official versions of each emulator and no unofficial forks or mods. It would get too confusing if I started to add multiple versions of an emulator, mods, and so forth. That's also why I didn't cover channel installs and forwarders. I wanted simple with lots of pics. That way anybody that can read and follow instruction shouldn't have a problem. If features or functions get added by the official developer / development team then I will modify my guide if need be. Hopefully anybody needing the fix you posted will see your post and follow it.

Maybe once I wrap everything up in this series I'll do an advanced guide covering unofficial versions of emulators and other random emulation stuff. Or even if the demand is great enough I might consider users guides for the emulators even though I think they are kind of unnecessary.

I blogged your guide (since you had permissions issues) --- look here (tags included).

Awesome! Thank you sir!

superb mate this is real nice and you put aload of work into this there should be a super thanks button for this one

Really helpful since I was putting off setting up emulation on my wii, thanks for making the guide.
